Automation technology

PALLETISATION

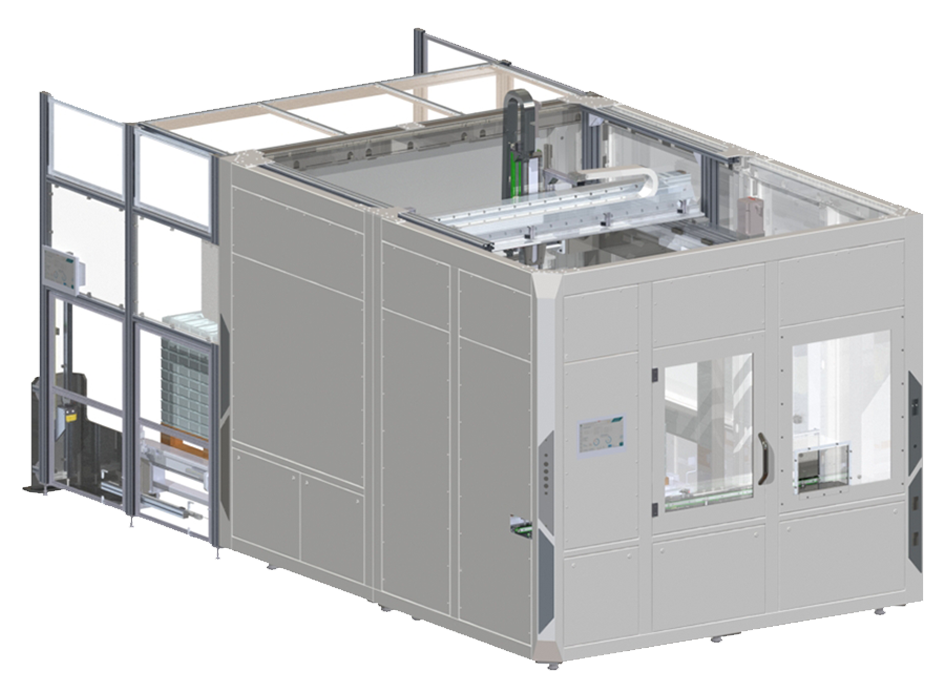

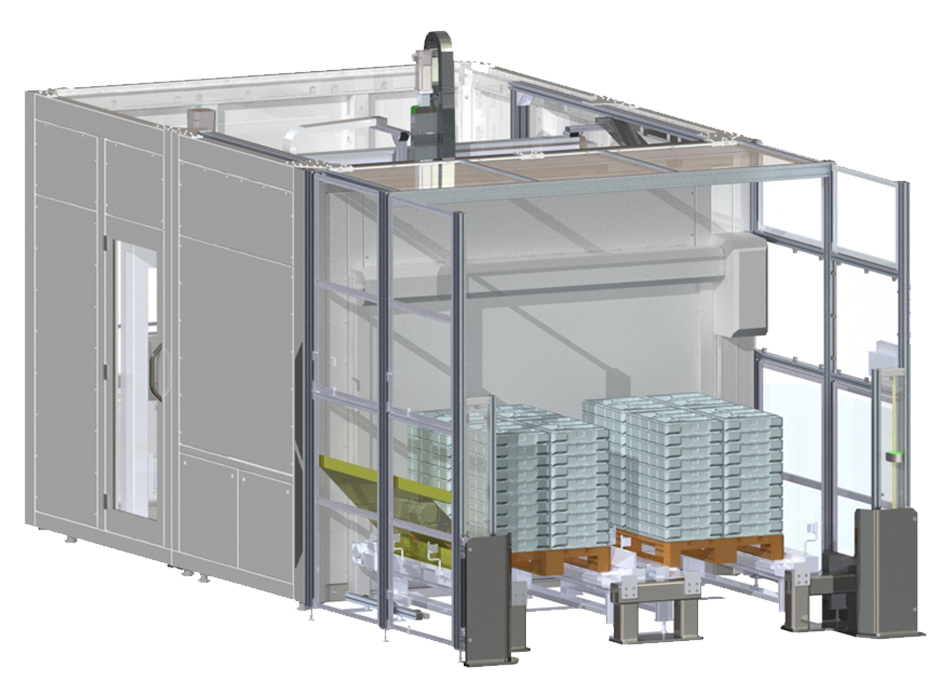

Palletizer



Function:

Automated component removal directly from pallet with multiple tray or KLT stacks and subsequent destacking of emptied trays or KLTs onto pallet.



Sequence:

  1. Pallets are driven in
  2. Separation of a tray or KLT from the stack
  3. Removal of a component from tray or KLT
  4. Placing of a component on the conveyor belt
  5. Unstacking of an empty tray or KLT on pallet in several stacks


Highlights:

  • Cycle time: up to 9 seconds per component
  • Over-spring crash detection in the gripper
  • Pallet can be fed by forklift or AGV
  • Conveyor belt with electrically adjustable track width (adaptable to component)
  • Manual loading and unloading of components possible via feed opening
  • Camera-supported position detection to compensate for position tolerance of trays or KLTs
