Product quality
on the test rig

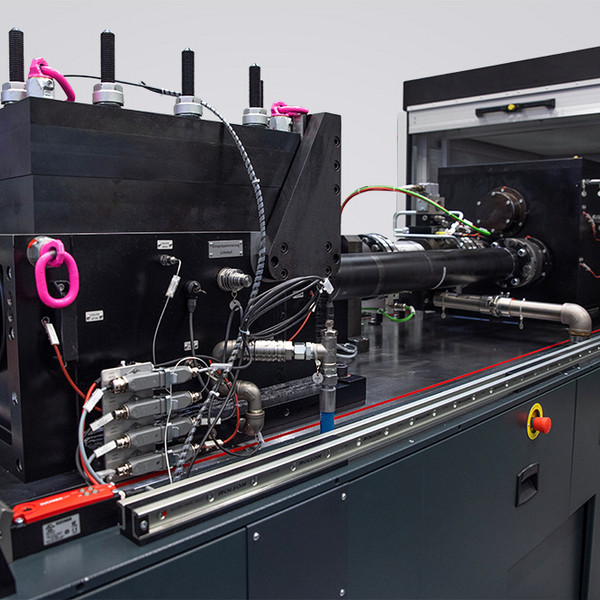

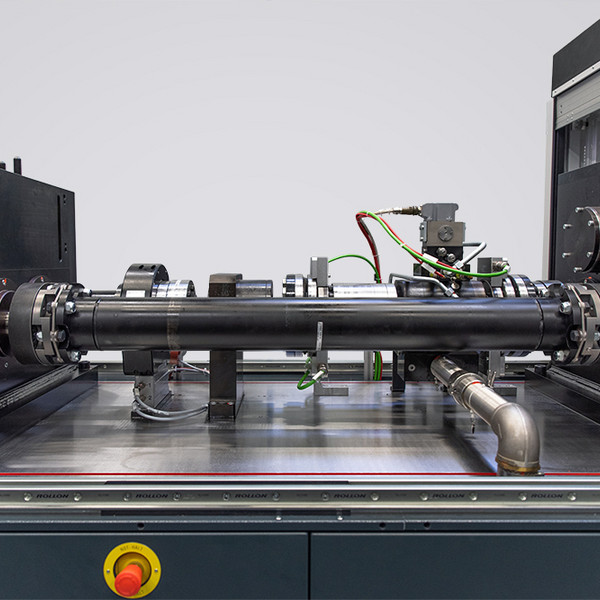

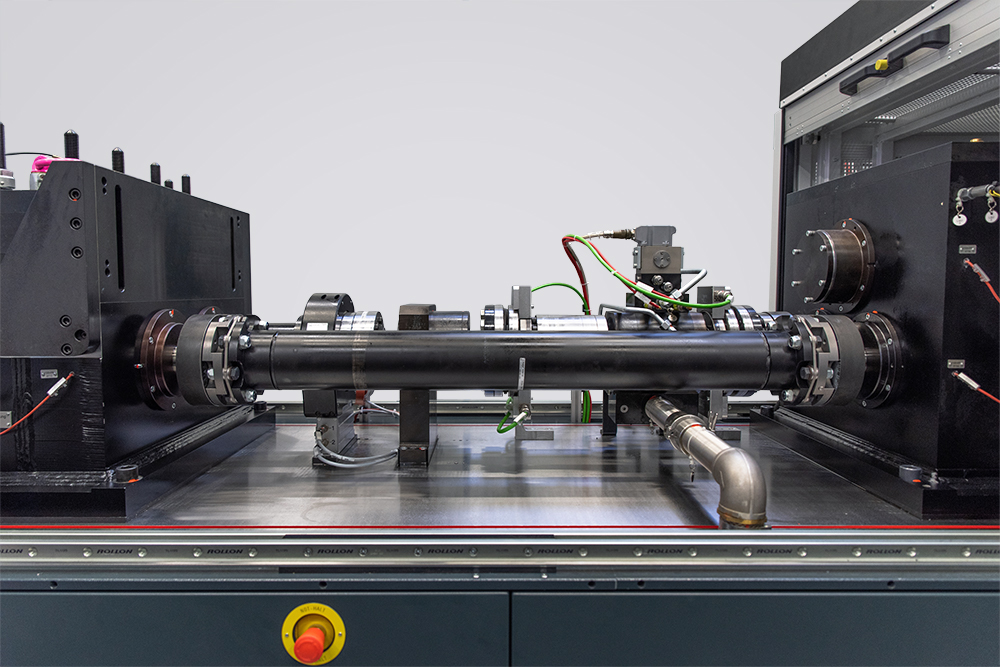

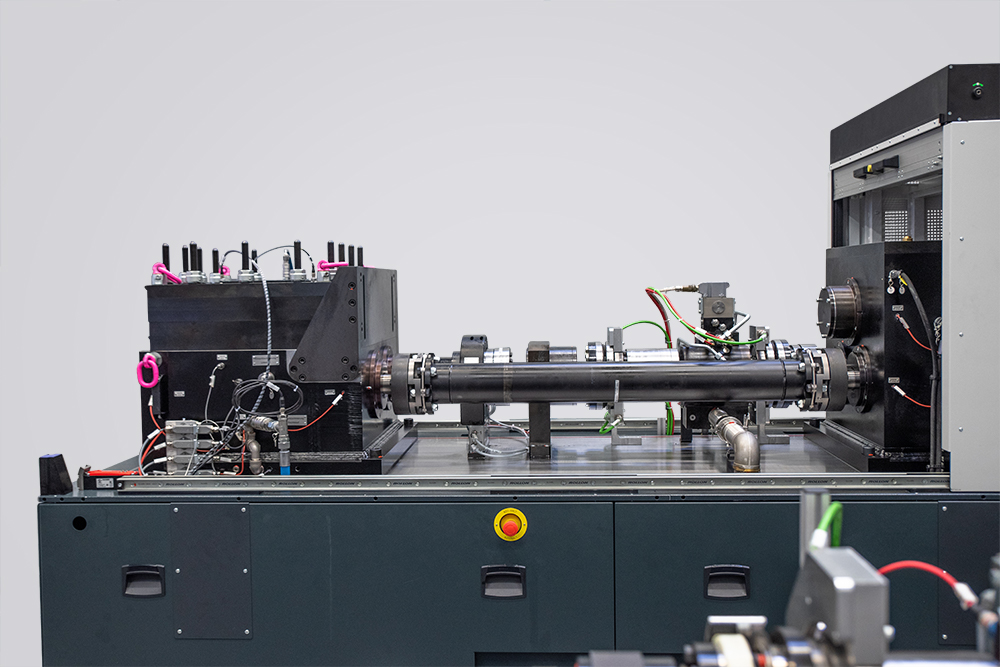

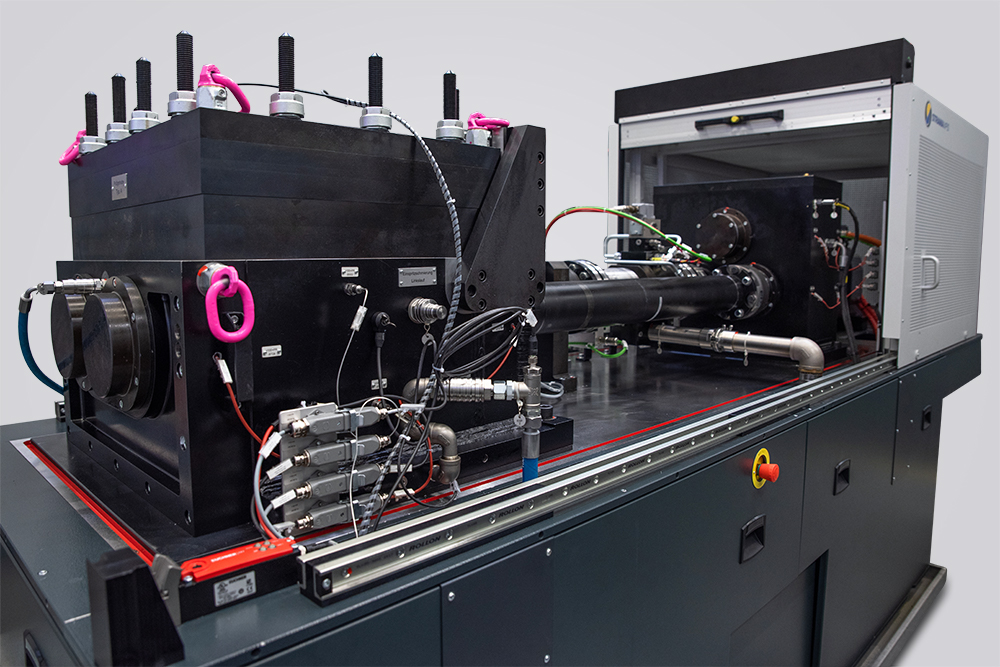

Gear test rig with variable center distance

Highlights and tests

  • Flexible center distance for a wide range of gear wheels
  • Option: Wear at slow speed
  • Programmable material test rig
  • Variable speed
  • Variable torque
  • Structure-born noise measurement used for detection of defects
  • Evaluation by means of LabVIEW
  • Oil lubrication
  • Cooling/heating
  • Network connection
  • Short delivery
  • Life test of gear wheels with varying diameters
  • Especially designed for high speeds and torques
  • Characteristic values obtained: Wear particles, efficiency level, tooth root bending, speed, torque, temperature, vibrations
  • Targeted industries: Automotive- and petroleum industry

Technical data and equipment

  • Rotational speed 60 – 6000 rpm
  • Two directions of rotation
  • Max. torque: 1650 Nm (pinion)
  • Adjustable center distance: 51mm - 140mm
  • Oil lubrication
  • Cooling/heating
  • Structure-born noise measurement used for detection of defects
  • Bottom-mounted motor in special design
